Behavioral :: Visitor (331) {C ch 26}

Example - Java :: Patterns\Behavioral\Visitor

Pattern Concept: to represent an operation to be performed on the elements of an object structure. Visitor allows defining a new operation without changing the classes of the elements on which it operates. In a sense, this is a reversal of the Object-Oriented Encapsulation paradigm: Visitor creates an external class to act on data in other classes. In effect, this creates a polymorphic method that does NOT reside in a class hierarchy.

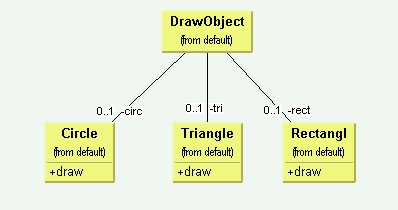

Cooper's example for the Visitor pattern considers a graphic shape hierarchy and a rendering problem: each shape is different, yet a number of closely related functions are scattered throughout the hierarchy, resulting in duplicated effort:

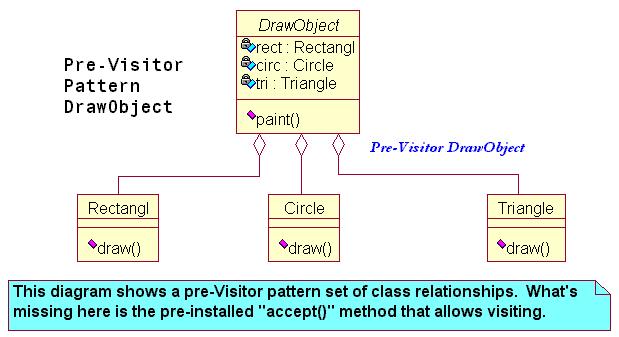

The Rose equivalent and the set of files implementing this simple 'pre-Visitor' example are below:

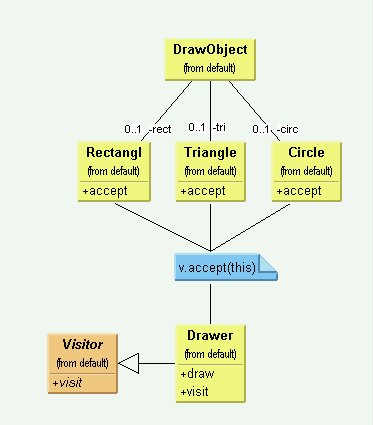

Instead of adding to the runtime footprint and processing time of each object, the draw() method is externalized in a Visitor pattern. The Visitor Drawer instance 'visits' the objects, and calls the draw()method for those objects that accept it, as shown here:

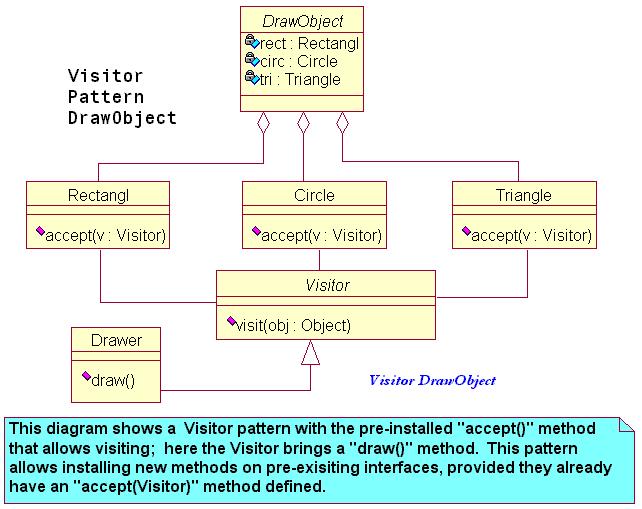

The Rose equivalent and the set of files implementing this simple Visitor revised example are below:

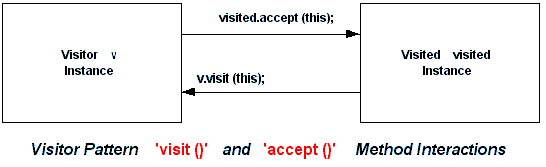

The core notion in this pattern is 'visiting'. Instead of binding the needed functionality in an inheritance hierarchy, only an accept() method needs to be defined in the hierarchy. ALL added functionality can provided via the visit() method after the Visitor's accept() method has been called, and the Visitor has returned itself as an argument. The visited object accesses the needed functionality from the supplied reference:

Every object that is visited must have the following method:

public void accept(Visitor v) {

v.visit(this);

}

The Visitor pattern is appropriate when there is a need to perform an operation on data contained in a number of different objects that have different interfaces, and there is no possibility of adding a common interface to the objects.

First Example - UML : VacationDisplay

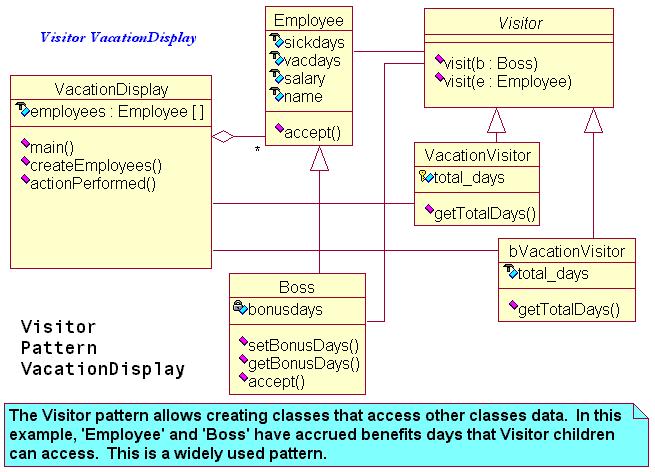

Here is Cooper's Class Diagram for the VacationDisplay application using the Visitor pattern to compute total vacation days for different types of employees, followed by the Rose equivalent:

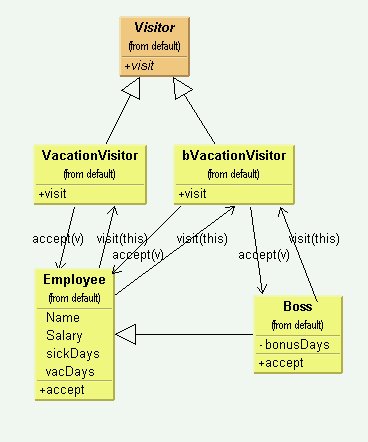

The UML diagram is above, and the list of Java files is below:

Second Example - UML : VacationDisplayCatchAll

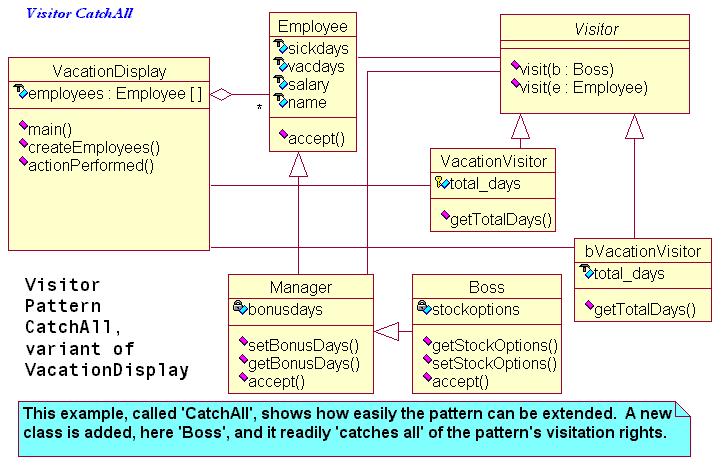

Here is the Rose Class Diagram for Cooper's variation second example, which uses a more general and extensible approach to the Visitor pattern. In this example, the previous actor of Boss was renamed to Manager, and a new Boss was derived from it; it shows how easily a derived class can 'catch all' of the Visitor functionality:

The UML diagram is above, and the list of Java files is below:

Issues and consequences of the Visitor pattern include:

• The Visitor pattern seems 'unclean' and contrary to good OOP practices. It does have a legitimate use in allowing behaviors for classes to be externalized.
• The Visitor pattern makes use of Double Dispatching, a function call with a kind of callback function. The accept() method is Polymorphic, and the visit() it calls is also Polymorphic. The bidirectional double dispatch allows easy adding of other behaviors as needed.
• To access a series of classes, the Visitor would need to know about the list organization to be able to visit all the classes; Java Iterator, or Enumeration interfaces would satisfy this need.
• The Visitor pattern is useful when there is a need to encapsulate the fetching of data from a number of instances of several classes. And Visitor can provide NEW functionality to a class without changing it. Visitor can add functionality to a collection of classes and encapsulate the method that it uses.
• The Visitor pattern does NOT violate Encapsulation; it can not access private data inside of another class. This may cause a class designer to create additional public methods for a Visitor.
• Besides the ease of adding new operations, a Visitor can gather related operations into a single class, rather than adjusting a class hierarchy; the resulting code is easier to maintain.
• The Visitor pattern is more useful to an established program or group of classes that is difficult to enhance or maintain. It often occurs in collaboration with the Composite pattern.
